Acoustics
Fabric-wrapped acoustic wall panels, made to size, supplied and installed

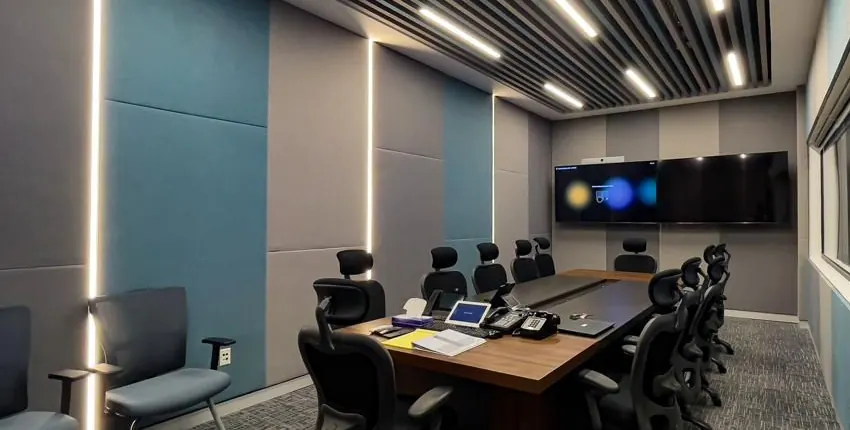

GYPTECH acoustic wall panels place a rigid glass-fibre absorber core behind a fabric face to control reverberation in offices, classrooms, auditoria and mosques. We make panels to the sizes your walls need, or stretch fabric on site over a track system for seamless and curved walls, and install both with our own crews.
- Saudi Aramco registered vendor — vendor code 10064288
- Supply and install, one contract
- Local stock in Al Khobar
Project details
The more detail you give us, the sharper the price.
Request received
Thank you. A GYPTECH engineer will review your scope and come back to you.
Specification
Acoustic wall panels
- Construction
- Rigid glass-fibre absorber core behind a fabric face specified acoustically transparent
- Delivery forms

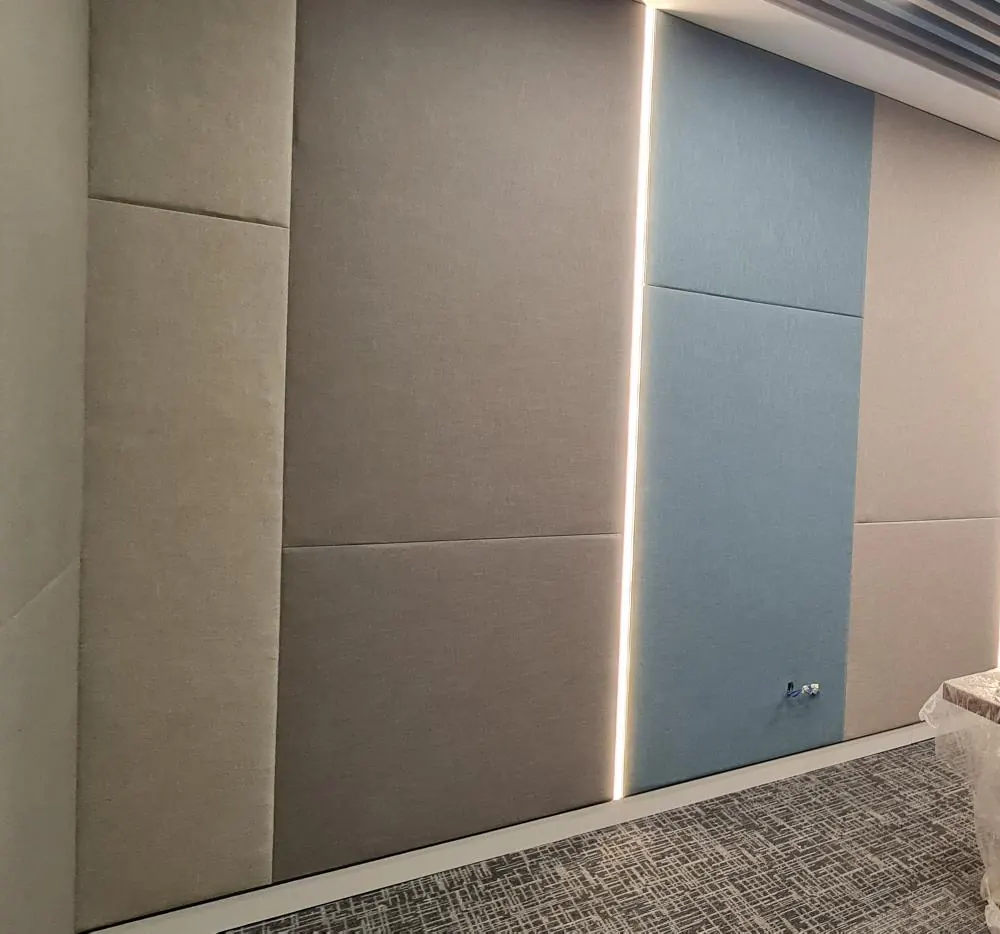

- Factory-wrapped panels for modular layouts, or a site-stretched fabric system on perimeter track for seamless, large and curved walls
- Panel thickness
- 25 mm or 50 mm nominal (wrapped panels), confirmed at submittal
- Panel size
- Width and length set per project — panels are made to size
- Absorber core
- Rigid glass-fibre board, density class 96–112 kg/m³
- Edges
- Chemically hardened; square profile as standard
- Track system
- PVC perimeter and intermediate track, 25 mm nominal square section, with high-density glass-fibre infill behind the stretched face
- Fabric and colour
- Specified acoustically transparent; fabric and colour agreed at sample stage
- Mounting (wrapped panels)
- Two-part mechanical clips, clips with hook-and-loop, adhesive, or impaling clips — selected to suit the substrate and access needs
How we work
- 01Send your drawings or BOQ
- 02We return a system proposal with quantities
- 03Supply
- 04Installation by our own crews
- 05Snag list and sign-off
Sectors we supply
- Offices
- Education
- Healthcare
- Hospitality
- Mosques
- Industrial
Frequently asked questions
Wrapped panels or a stretched-fabric wall — which should I choose?
Factory-wrapped panels suit modular layouts, demountable panels and phased fit-outs. A site-stretched fabric system covers long and curved walls in one continuous plane with no visible panel joints, because the track, not a panel module, sets out the wall.
What thickness do the panels come in?
Wrapped panels are offered at 25 mm or 50 mm nominal, confirmed at submittal. A thicker absorber core, or an air gap behind it, extends absorption towards lower frequencies; we set the build-up against the room's use.
Do you supply only, or supply and install?
We supply and install under one contract: panels or track, infill and fabric, fixings, trims and accessories, and the installation. The substrate wall, blocking for heavy wall-mounted fixtures and MEP coordination are by others.
What do you need to price an acoustic wall?
Wall elevations or a plan with the wall lengths and heights to be treated, the substrate, the room's use, and any doors, screens or sockets to work around. A BOQ is enough if you already have one.
How are fabric walls cleaned?
Vacuum the face with a soft brush attachment and spot-clean following the guidance for the fabric selected. Do not wet-clean, steam or apply solvents.
Ready to price your project?
Send your drawings or BOQ and we'll return a system proposal with quantities.
