HPL and phenolic toilet cubicles, supplied and installed in the Eastern Province
GYPTECH builds floor-standing toilet cubicles from compact melamine-faced board, moisture-resistant through its full thickness, braced by an anodized aluminium headrail and set on height-adjustable legs. We fabricate the panels in our Saudi workshop and install them with our own crews, priced from your BOQ or drawings.
- Saudi Aramco registered vendor — vendor code 10064288
- ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certified (SISTEMA)
- Supply and install, one contract
Project details
The more detail you give us, the sharper the price.
Request received
Thank you. A GYPTECH engineer will review your scope and come back to you.
Specification
Toilet cubicles
- Construction

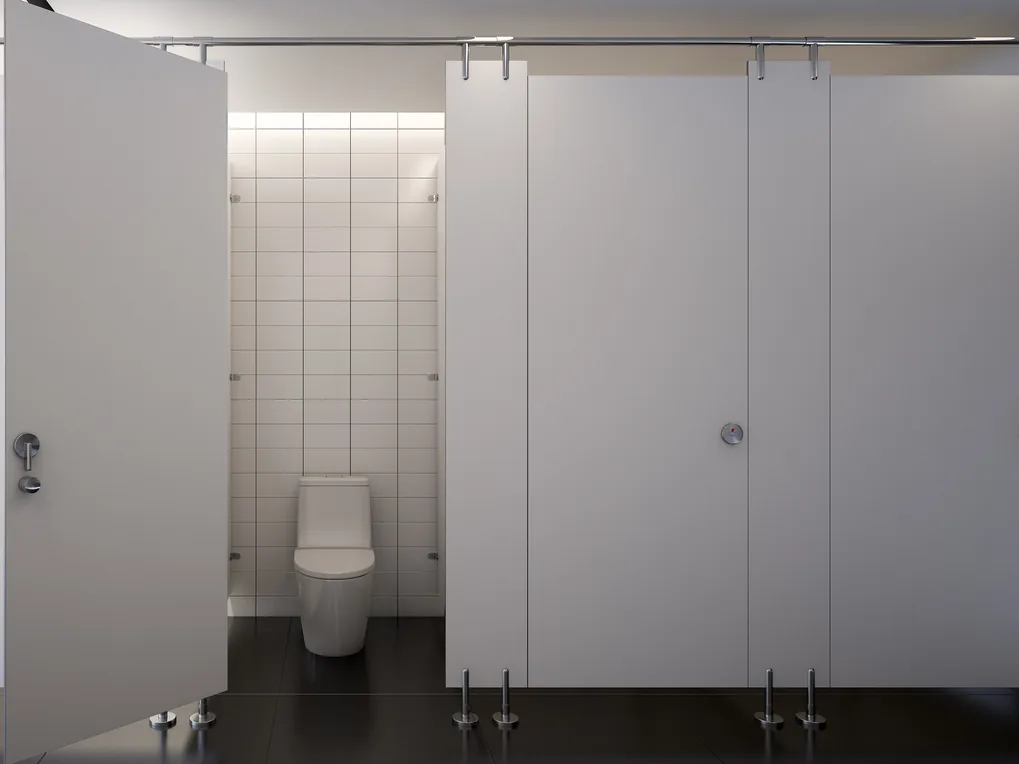

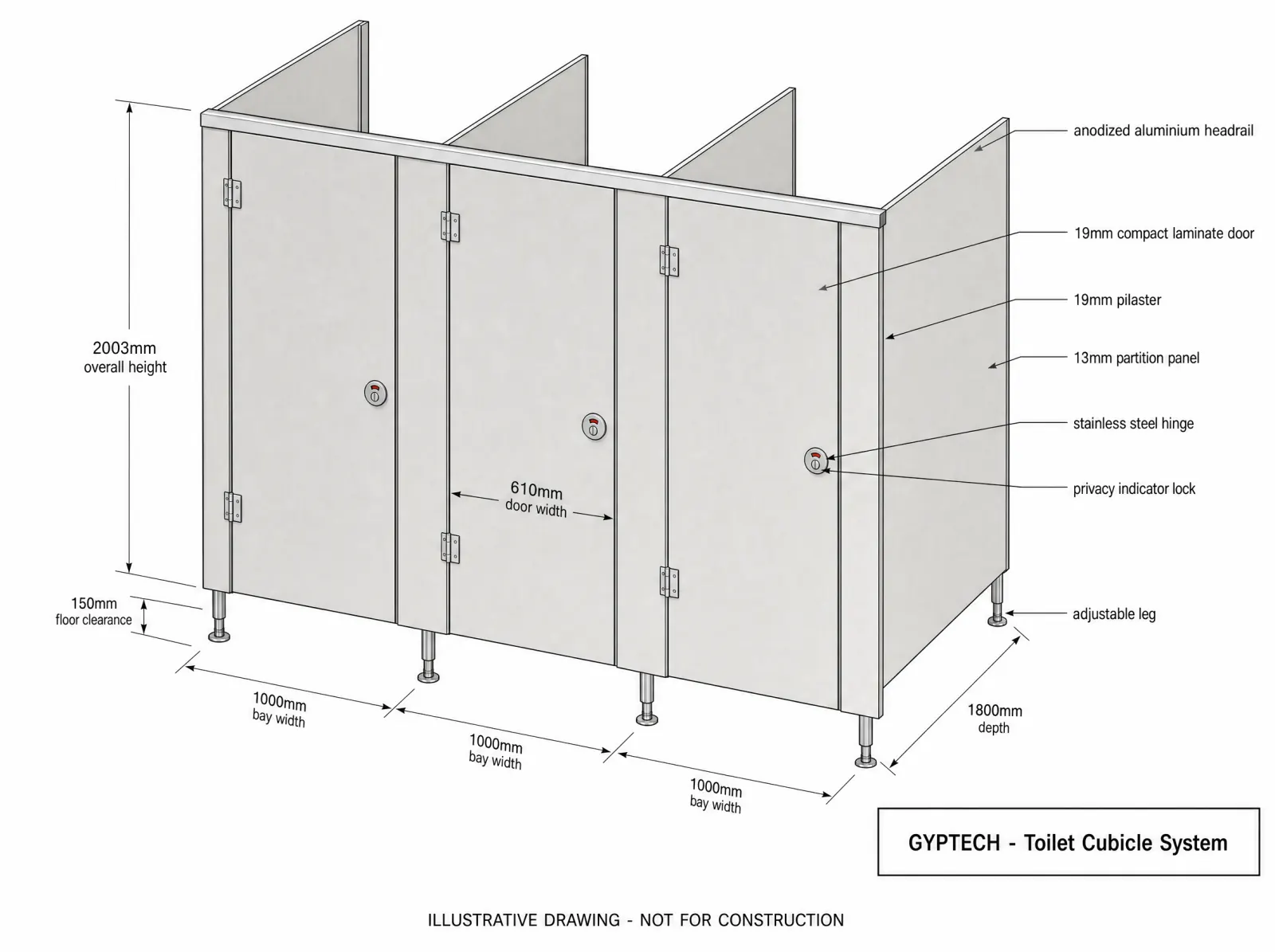

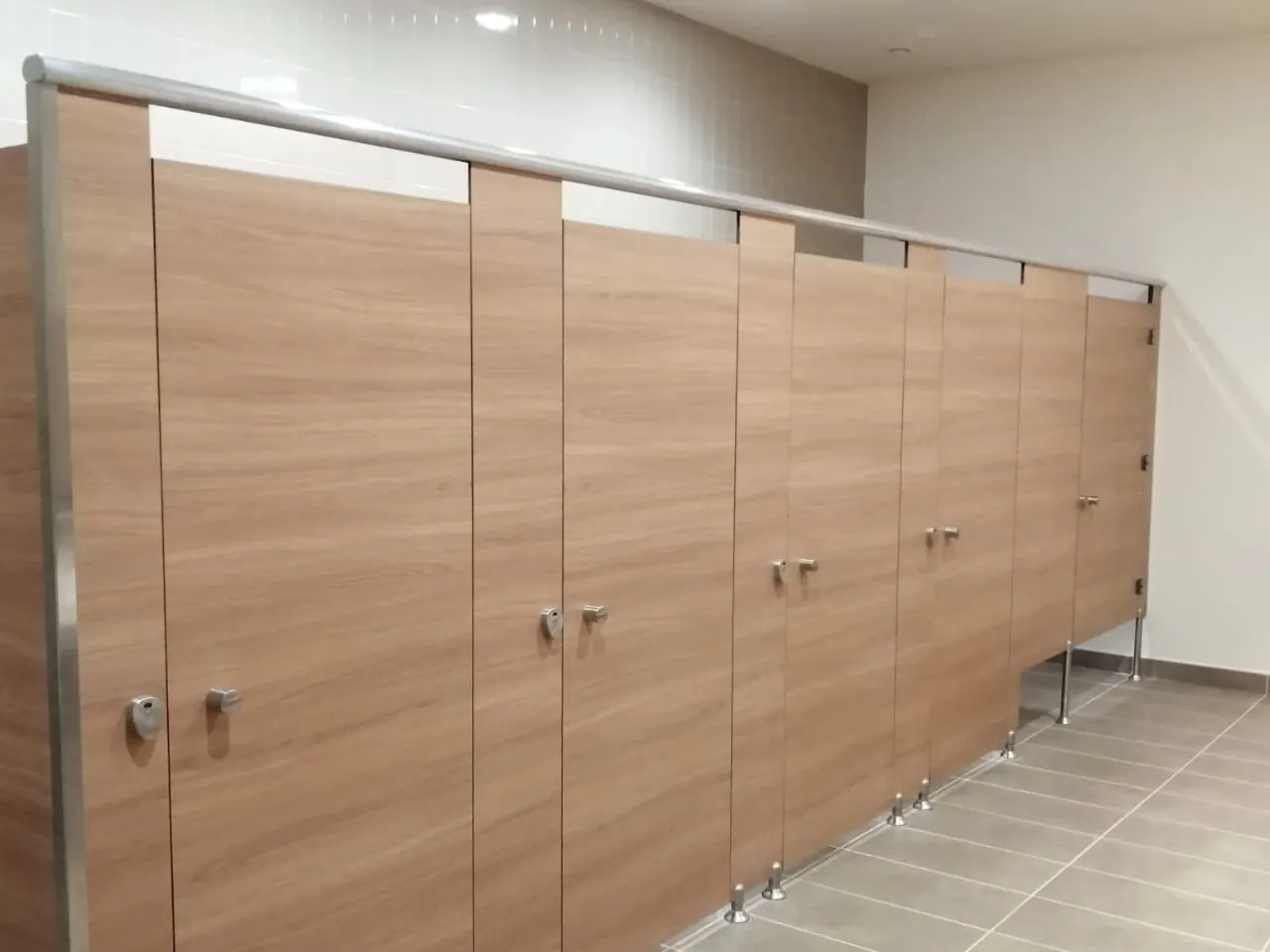

- Floor-standing cubicles: doors, pilasters and partitions braced by a continuous aluminium headrail
- Panels
- Compact melamine-faced board, faced both sides, chamfered edges; moisture-resistant through the full thickness (Type MDF.H to EN 622-5)
- Panel thickness
- 13 mm and 19 mm; the thickness schedule is confirmed in writing for each project
- Cubicle size
- Recommended 1000 × 1800 × 2003 mm (W × D × H); range W 0.8–2.2 m · D 0.9–2.85 m · H 1.8–2.9 m
- Doors

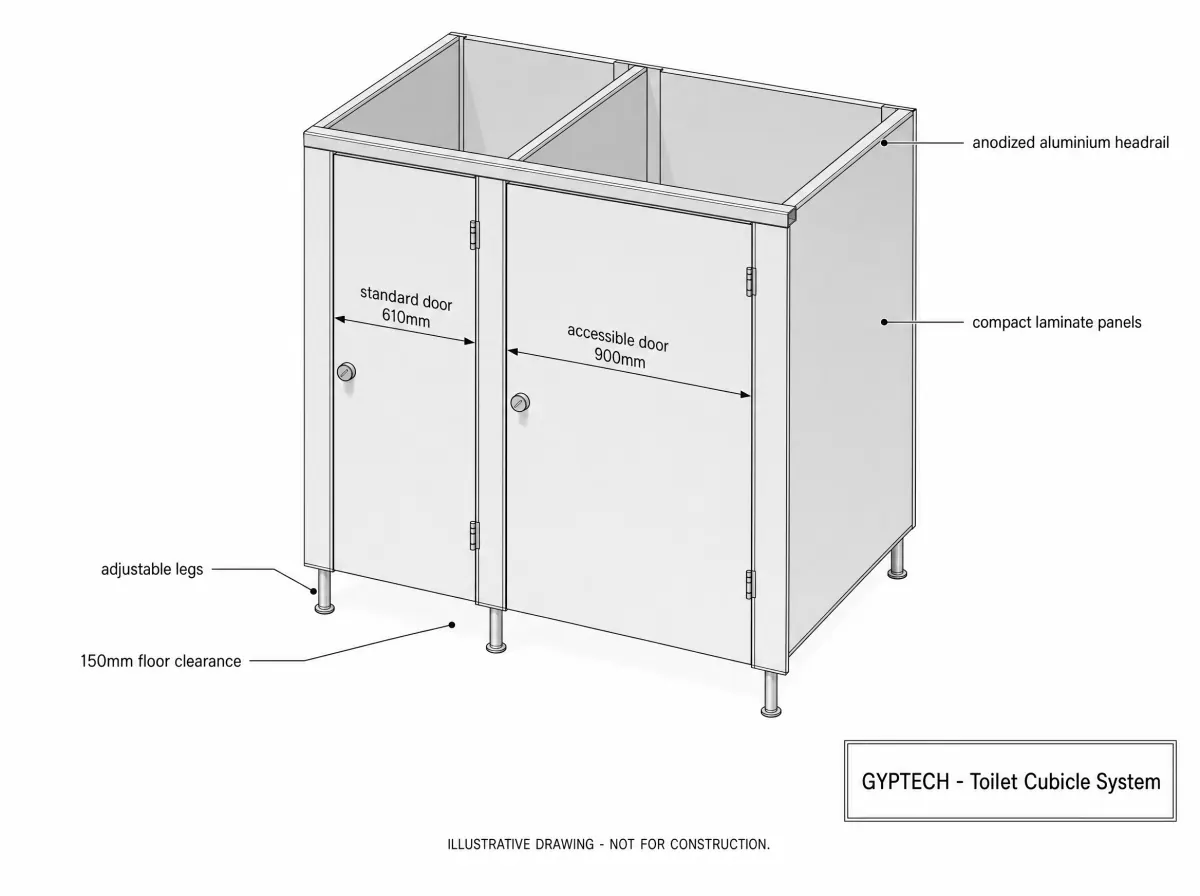

- 610 mm inward swing as standard, 550–1000 mm range; accessible doors 900–1000 mm with a fourth hinge
- Floor clearance
- 150 mm standard, adjustable 50–150 mm
- Aluminium profiles
- Anodized aluminium 6063-T5: headrail 77 × 35 × 1 mm, U-channels 25 × 16.5 × 1.8 mm; powder coating on request
- Hardware
- Two lines, chosen per project: stainless steel (304; 316 on part of the range) or black nylon; three hinges per door, turn-lock occupancy indicator, coat hook, knob and rubber-lined door stop
- Mounting

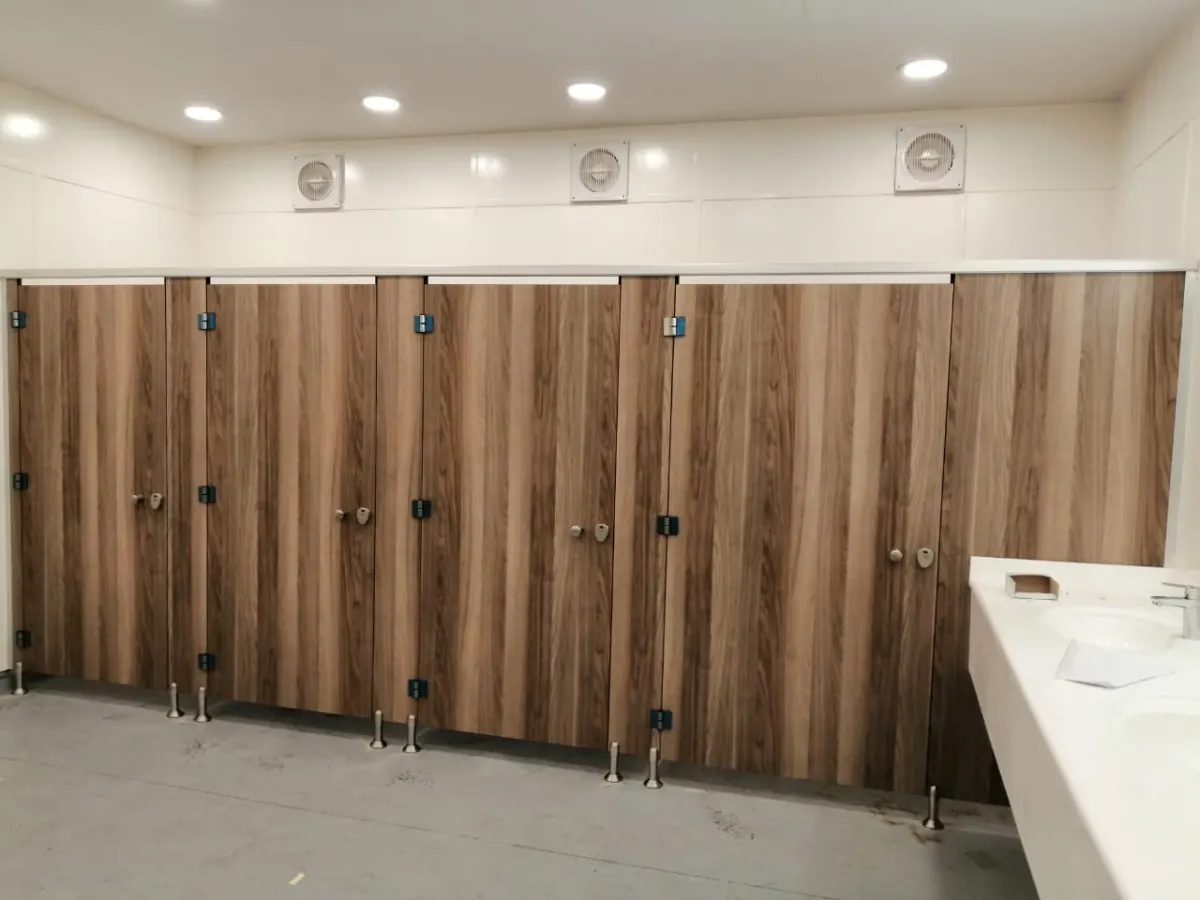

- Pilasters on floor anchors with studs, levelling plate and locking nuts, on height-adjustable legs; U-channels at wall abutments and panel joints
- Decor
- Selected and confirmed per project from the range of the board confirmed for that project
- Accessories

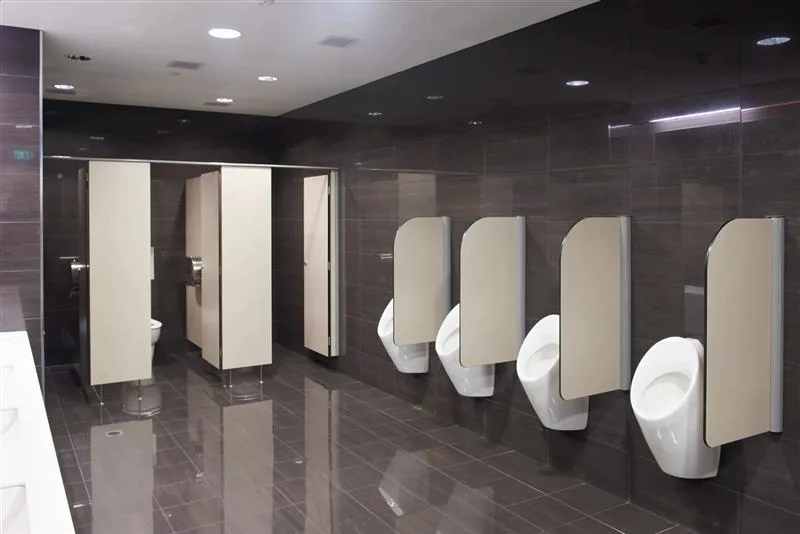

- Urinal screens in the same board and structure
Colours and finishes
Indicative colours: confirm against a physical sample. HPL decor names are from the supplier's range (Swiss Krono).
HPL decors
K101Front White
U1301Ivory Cream
U2653Light Grey
U112Grey
U164Anthracite
U3271Ice Blue
U4810Navy Blue
U10040Dive Blue
U10020Canyon Red
U4439Pistachio Green
U6931Lemongrass
U10010Sesame Beige
D20230Grace Oak Natural
D9103Light Oak
D4428Oak Natural
D4430Oak White
D3800Rome Oak
D375Maple Natural
See all finishes (202)
D1003Selena
D1004Dolores
D1007Consuela
D1008Bianca
D1035Ancient Oak
D1036Everlasting Oak
D1038Millenium Concrete
D1039Midday Walnut
D1041Eternal Oak
D1043Era Concrete
D1045Modern Oak - Stave
D1047Etna
D1051Concrete White
D1052Melaphyre
D1079Osaka
D1082Mercurio
D1083Kioto
D1087Torino Marble
D1088Vesuvius
D1089Lungo Oak
D1091Solare Stone
D1092Mocha Oak
D1093Lunare Stone
D1094Latte Oak
D1095Marble Gelato
D1096Frappe Oak
D1097Marble Dolce
D1102Terrazzo Bianco
D1202Light Granite
D1972Locarno Apple
D20110Soul Oak Natural
D20120Soft Chestnut White
D20130Soft Chestnut Natural
D20140Cosy Oak Natural
D20150Calm Walnut Brown
D20200Lamella Cream
D20210Lamella Terra
D20240Oasis
D20250Origin
D20260Ocean
D20270Eden
D20280Embrace
D20290Emotion
D20300Amity
D20310Adoration
D20320Allegory
D20551Grace Oak Gold
D20571Cherry Gold
D20734Winter Oak
D20744Spring Oak
D20754Moody Oak
D20764Cosy Walnut
D2226Wenge Magic
D2360Antique Cherry
D2419Antique Oak
D2609Palermo Light Oak
D2713California Walnut
D2840Royal Oak
D2841Marino Walnut
D30080Felt Grey
D30090Cloudy Grey
D30100Woven Cream
D30160Seaside Beige
D30170Stonetex Beige
D30180Stonetex Black
D30190Art Deco Walnut
D30220Quartzite Grey
D3025Sonoma Oak
D3055Rustical Oak
D3158Verona Ash
D3166Rijeka Light Oak
D3168Whitewashed Pine
D3265Concrete Dark
D3269Enigma
D3273Canyon Oak
D3274Concrete
D3275Cortona Oak
D3276Ancona Oak
D3311Traviata Oak
D3312Warsaw Oak
D3313St. Petersburg Oak
D3315Oslo Oak
D3316Helsinki Oak
D3349San Marino Oak
D3798London Oak
D3799Paris Oak
D3801Madrid Oak
D3806Bordeaux Beech
D381Beech
D3810Nice Walnut
D3811Venice Walnut
D3813Barcelona Walnut
D3818Lviv Marron
D3820Bern Marron
D3821Stockholm Oak
D3823New York Oak
D3963Decade Concrete
D4008Krypton
D4031Havana Oak
D4032Biscuit Oak
D4033Solar Oak
D4040Retro Wood
D4095Carbo Pine
D4096Jute Grey
D4225Artisan Oak Natural
D440Vancouver Light Maple
D4409Walnut Brown
D4410Walnut Gold
D4412Lime Cream
D4418Rustic Chestnut Natural
D4419Rustic Chestnut White
D4426Ash White
D4432Elm Natural
D4443Marble Gold
D4448Marmo Romeo White
D4452Titan Silver
D4454Titan Taupe
D4822Walnut Ambassador Terra
D4865Versailles Oak
D4871Marble Subtle
D4876Sentimental Marble
D4878Sophisticated Gray Rock
D4880Matera
D5194Sonoma Tabac Oak
D60654Veneer Oak
D60664Autumn Oak
D60674Quartzite Pearl
D60684Stone Aurum
D60694Marble Bernini
D60704Marble Feruzzi
D60714Marble Borgese
D60724Marble Fiorentino
D60774SOFIA OAK
D60784MARBLE DONATELLA
D60794MARBLE ANTONELLA
D60804Travertine Lucrezia
D60814MARBLE CASSANDRA
D60824GRANITE BIBIANA
D60834GRANITE AURORA
D60844GRANITE BEATRICE
D6915Tephra Concrete
D6916Capella Concrete
D70050Tender Oak Natural
D70060Terrazzo Fresh
D70070Heyday Beige
D70601Calacatta Oro
D722Walnut
D881Uni Metallic
D9118Windsor Oak
D9163Ecco Walnut
D9164Caravaggio Walnut
D9300Wild Pear
D9310Alder
D9311Mountain Alder
D9450Dark Walnut
K110Interior White
K300White
U10030Aloe Green
U119Light Beige
U120Dove Blue
U141Pink
U162Graphite
U171Summerrain Grey
U190Black
U2508Olive
U3053Cappuccino
U3057Lava Grey
U3114Graphite
U3188Toffee
U3189Truffle
U3261Vanilla
U3266Jasmine
U3293White Polar
U3824Sea Blue
U4435Smoke Blue
U4436Terracotta Red
U4446Tender Rose
U4809Granit Grey
U511Interior White
U540Stone Grey
U544Field Grey
U6933Cashmere
U8681White Alaska
U8685Alpine White
How we work
- 01Send your drawings or BOQ
- 02We return a system proposal with quantities
- 03Supply
- 04Installation by our own crews
- 05Snag list and sign-off
Sectors we supply
- Offices
- Education
- Healthcare
- Hospitality
- Mosques
- Industrial
Frequently asked questions
Phenolic or HPL compact laminate — what are your panels?
In the regional market both names are used for solid compact board cubicles. Our panels are compact melamine-faced board, moisture-resistant through the full thickness (Type MDF.H to EN 622-5) — the construction the market calls solid phenolic. If your specification calls for compact laminate to EN 438-4, tell us at enquiry stage and we confirm acceptance before ordering.
What does a priceable cubicle BOQ include?
The number of standard and accessible cubicles and any urinal screens, the cubicle sizes or a dimensioned layout, door width and swing, panel thickness, hardware line (stainless steel or black nylon), decor, floor clearance and the site location. A washroom plan is enough for us to prepare the quantities.
Do you supply only, or supply and install?
We supply and install under one contract: panels, aluminium profiles, hardware and fixings, installed under GYPTECH site supervision. Finished walls and floor, sanitaryware and plumbing, and ventilation are by others.
What drawings do you need to price?
A washroom layout plan with room dimensions, or your BOQ. Door swings, accessible cubicles and wall positions help us set out the run; we then prepare shop drawings for approval before fabrication.
Which hardware should I choose for a coastal or humid washroom?
Two hardware lines are offered: stainless steel (304, with 316 on part of the range, item by item) and black nylon. The line and grade are chosen per project; for coastal and high-humidity rooms we agree them with you in the project hardware schedule.
