Ceilings

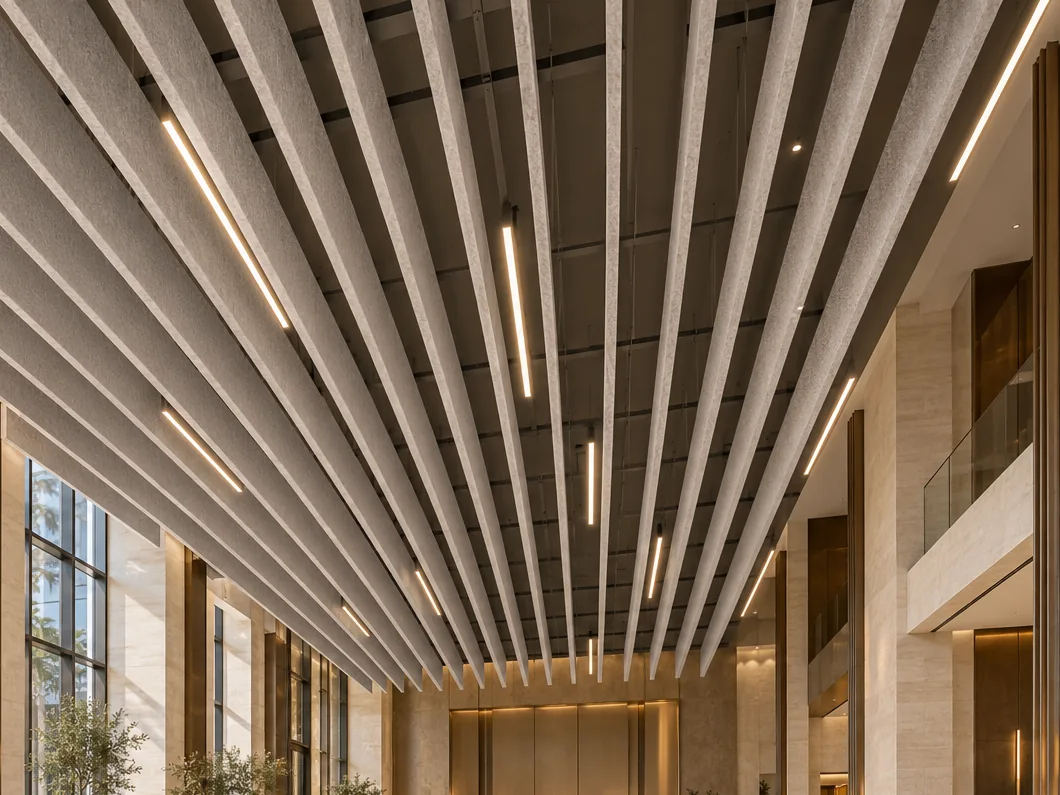

Fabric-wrapped acoustic baffle ceilings for malls, offices and lobbies

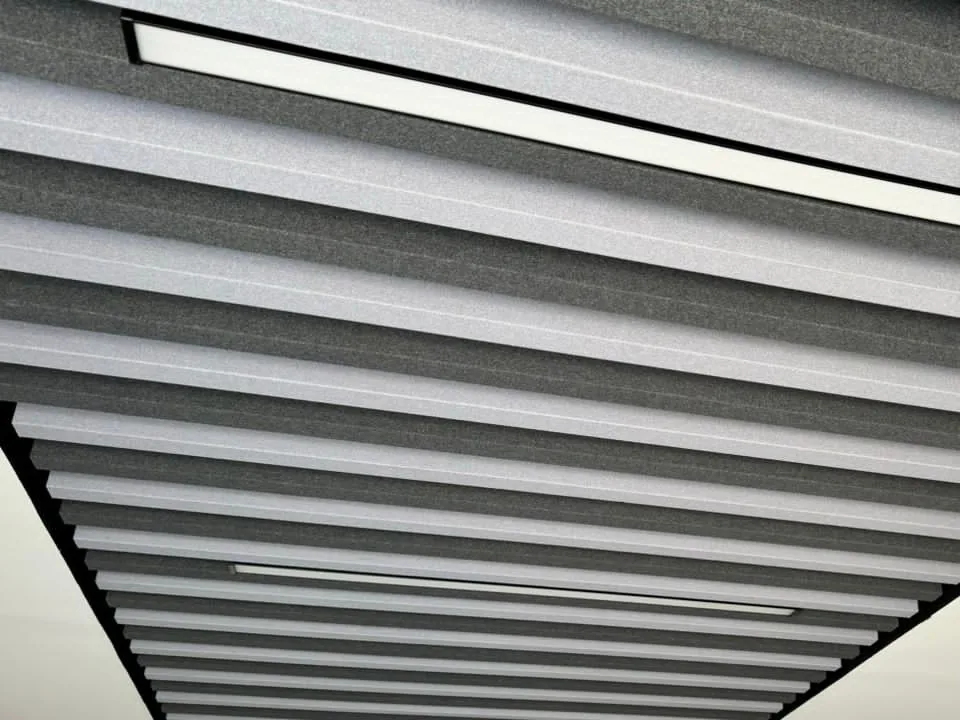

GYPTECH baffle ceilings are vertical U-profile blades clamped onto a suspended carrier channel, giving an open linear ceiling that hides the services above and adds sound absorption on both faces of every blade. Section, length, spacing and fabric are set per project, and each blade demounts on its own for access to the plenum.
- Saudi Aramco registered vendor — vendor code 10064288
- Supply and install, one contract
- Local stock in Al Khobar
Project details
The more detail you give us, the sharper the price.
Request received
Thank you. A GYPTECH engineer will review your scope and come back to you.
Specification
Baffle ceilings
- Construction
- Vertical U-profile blades clamped onto a suspended carrier channel; blades demount individually for plenum access
- Fabric-wrapped baffle
- Metal baffle 50 × 100 mm, 2400 mm standard length, 120 mm standard gap
- Custom sizes
- Metal sections made to order up to 220 mm wide × 300 mm high × 4000 mm long; spacing set to the acoustic and visual intent of the project
- Perforated metal baffle
- 30 × 100 × 3000 mm, 120 mm edge gap / 150 mm centres
- Blade material
- Aluminium 3000-series to ASTM B209M, 0.5–1.0 mm, or hot-dip galvanized steel to ASTM A653 Z90/G30, 0.5–0.7 mm
- Fabric
- Wrapped in the fabric and colour requested in the client order
- Coatings (unwrapped metal)
- Polyester 5 µm reverse / 20 µm exposed face; polyester powder 70–80 µm; PVDF and comparable systems on request
- Suspension
- 2400 mm carrier channels on M6 threaded rod with nut and washer, spliced along the run, with end caps at exposed blade ends
How we work
- 01Send your drawings or BOQ
- 02We return a system proposal with quantities
- 03Supply
- 04Installation by our own crews
- 05Snag list and sign-off
Sectors we supply

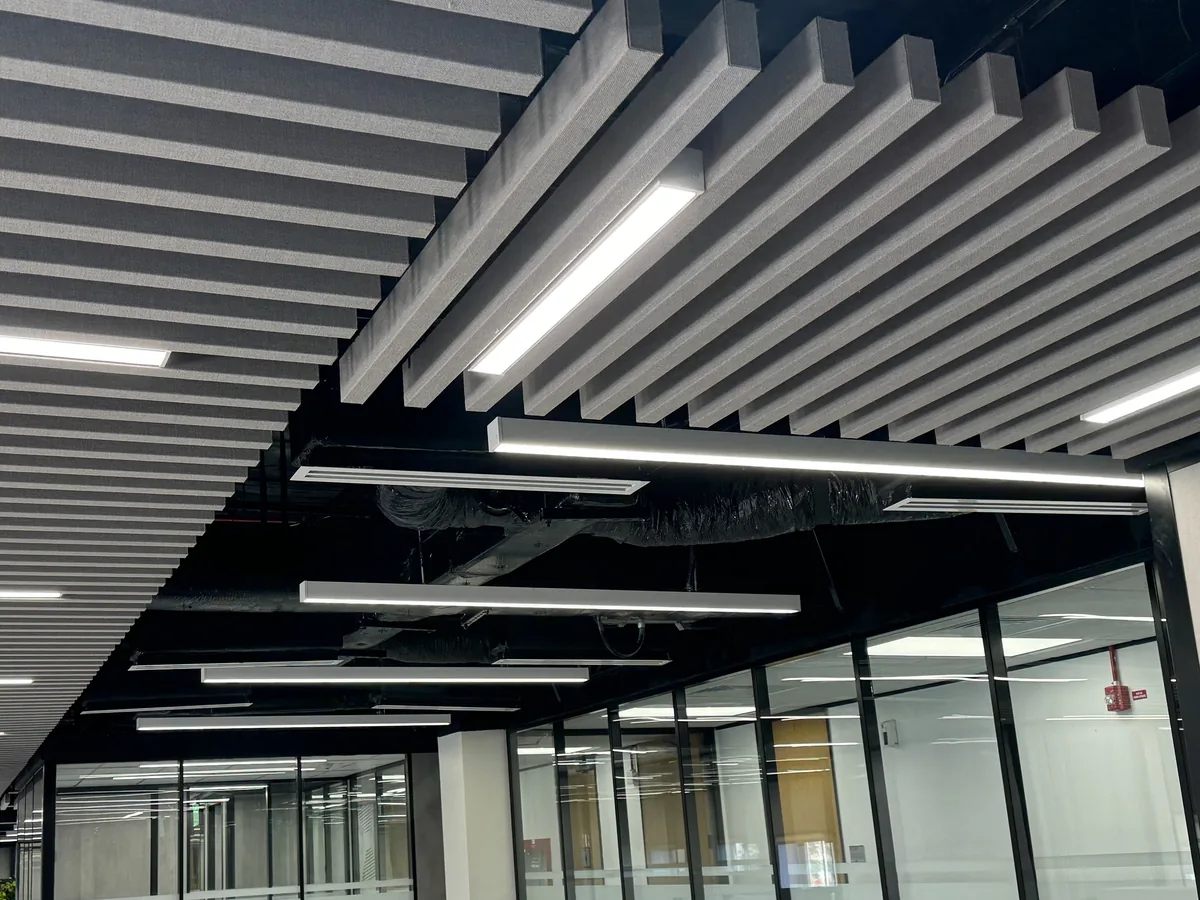

- Offices
- Education
- Healthcare
- Hospitality
- Mosques
- Industrial
Frequently asked questions
What size are the baffles, and how far apart are they hung?
Our standard fabric-wrapped baffle is 50 × 100 mm in section and 2400 mm long, hung with a 120 mm gap. Custom metal sections are made up to 220 mm wide, 300 mm high and 4000 mm long, and spacing is set to the acoustic and visual intent of the room.
Can I still reach the services above a baffle ceiling?
Yes. The blades clamp onto the carrier and demount one at a time, so the plenum stays reachable after handover without dismantling a run. Diffusers, sprinklers and luminaires between blades are agreed with the MEP designer before fabrication.
Do you supply only, or supply and install?
We supply and install under one contract: baffle blades, carrier channels, splicers, end caps, suspension rods and fixings, installed by our crews. A soffit suitable for anchoring, MEP coordination above the baffle plane and painting of the soffit are by others.
What drawings do you need to price?
A reflected ceiling plan or layout showing blade direction, the area and ceiling height, the services to coordinate and the fabric colour you want. A BOQ is enough if you already have one.
Can you hang baffles under an existing exposed soffit?
Baffles hang from their own carrier channels on threaded rod anchored to the soffit, so they suit open soffits in malls, offices and lobbies. We need the soffit type and the services above the blade plane to be complete and inspected before installation.
Ready to price your project?
Send your drawings or BOQ and we'll return a system proposal with quantities.
