Phenolic lockers and changing rooms, made in Dammam

Specification

Phenolic lockers and changing rooms

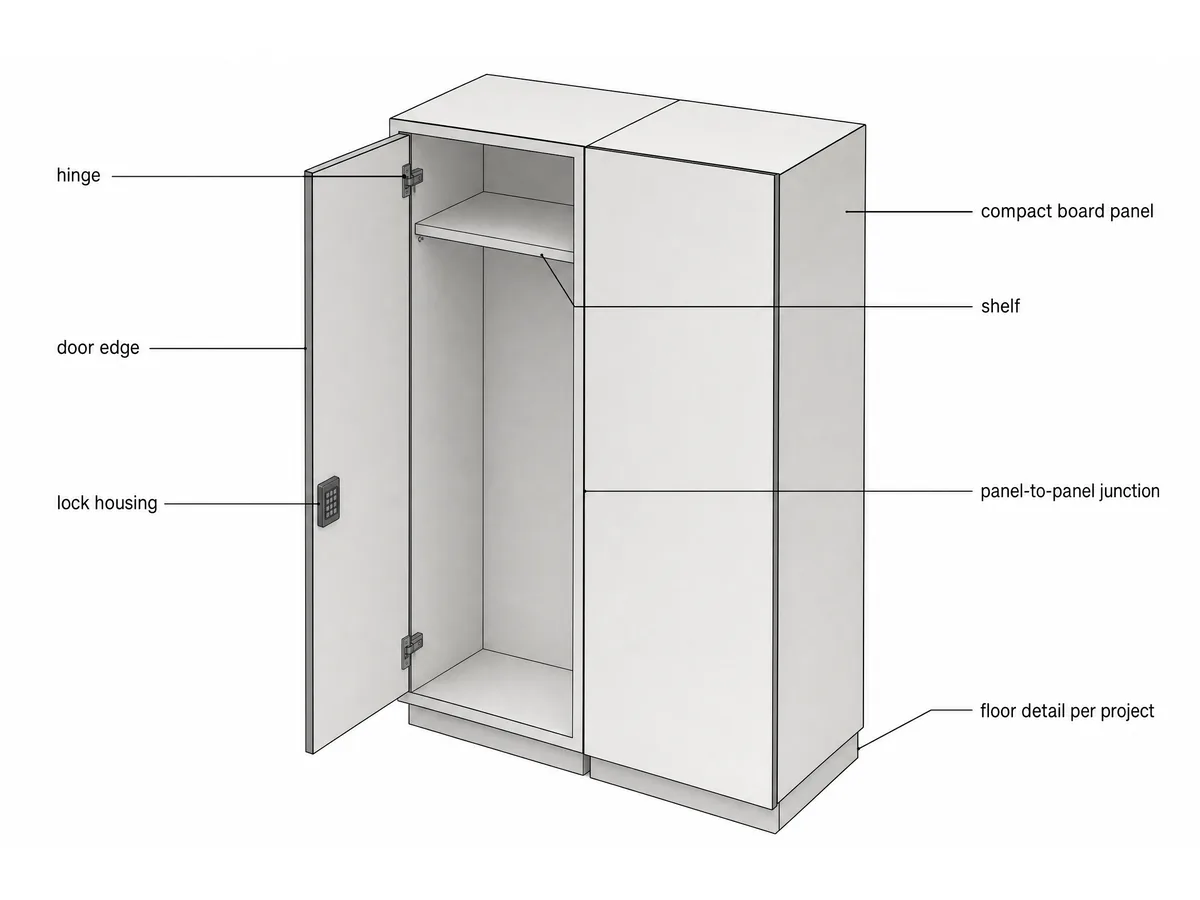

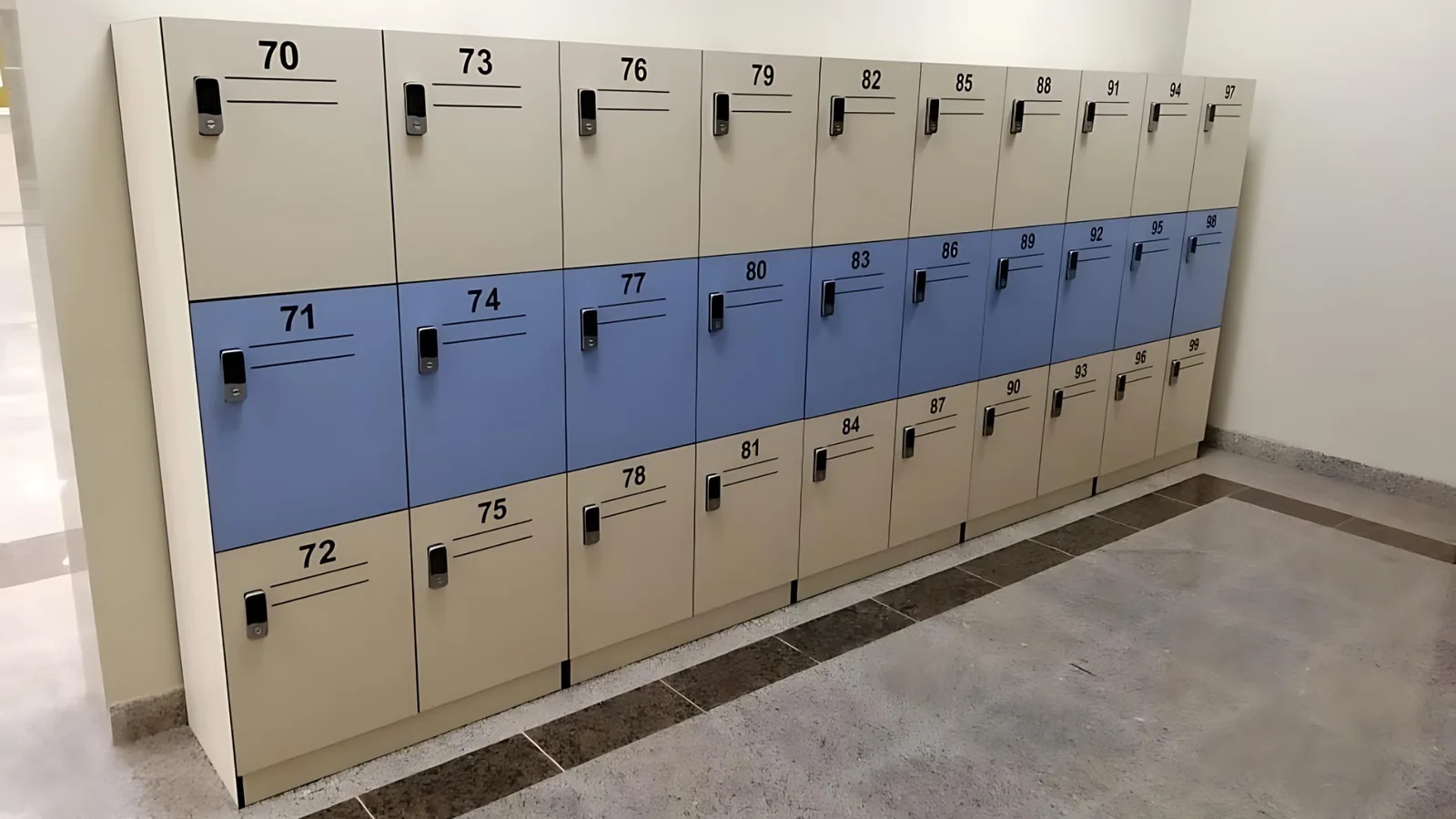

Locker construction

Floor-standing banks: doors, carcass, shelves and back are cut, edge-machined and drilled in our Dammam workshop, built into columns and banks on site, then levelled and anchored

Panels

Compact board — the construction the regional market calls “phenolic”; the board is confirmed for each project

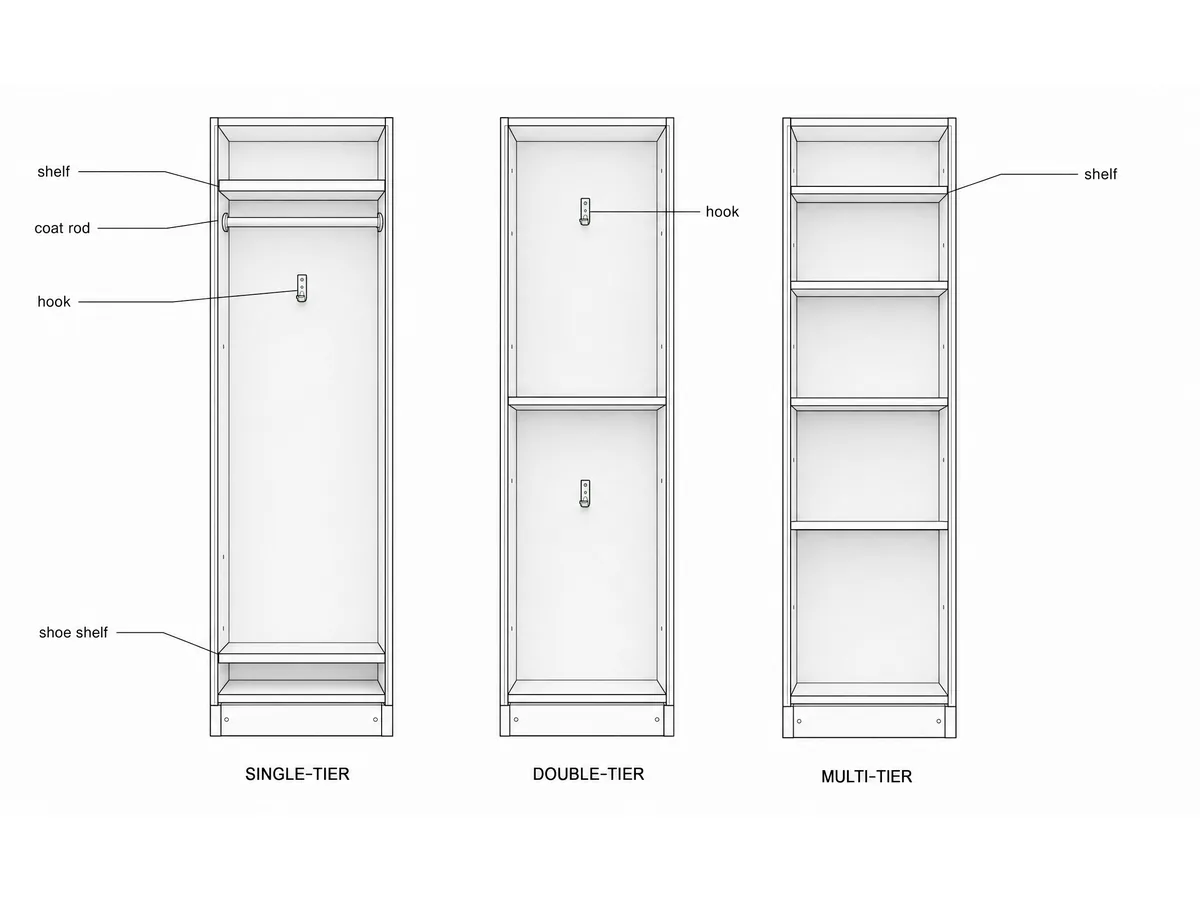

Arrangements

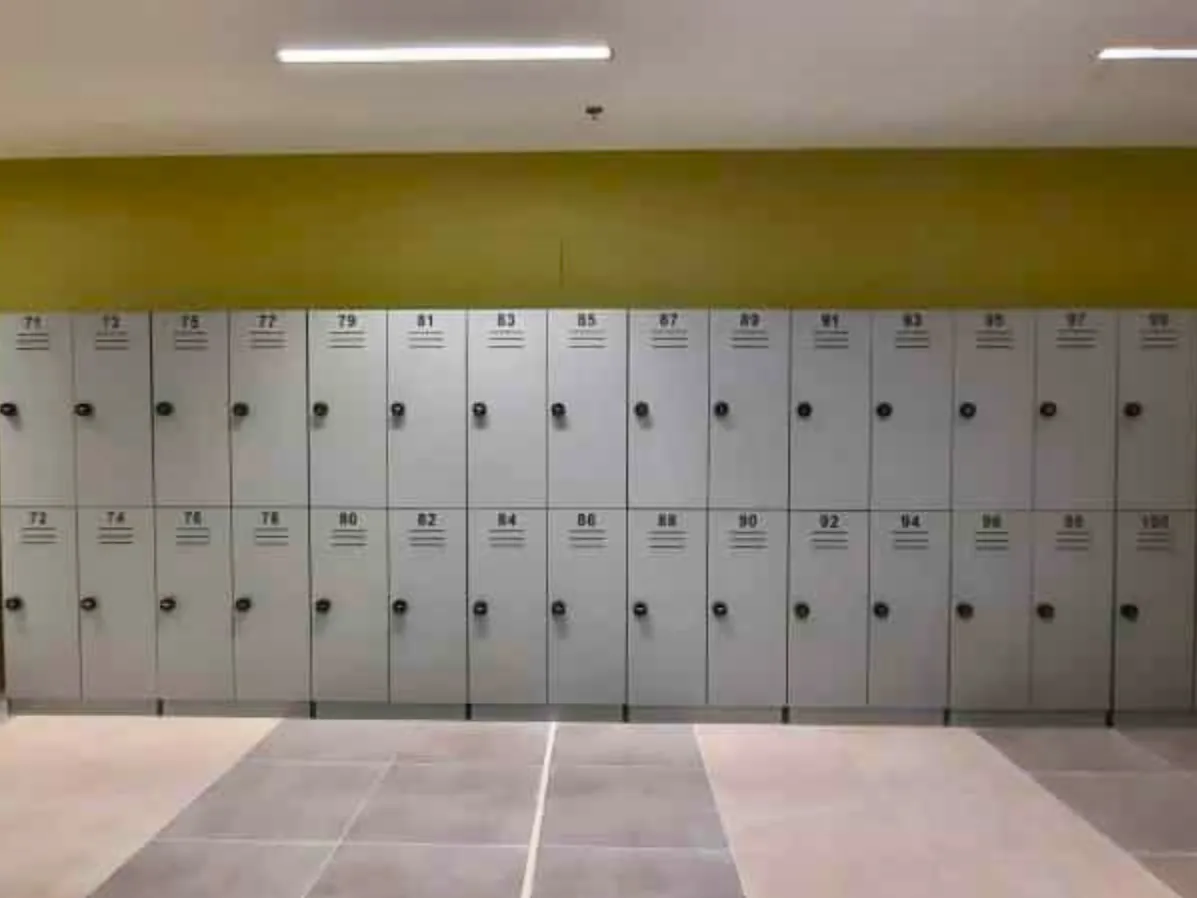

Single-tier, double-tier and multi-tier columns

Interior fit-out

Shelves, coat rods, hooks and shoe shelves, in the combination the project needs

Sizes

No catalogue sizes: unit height, width and depth, tiers per column and columns per bank are agreed per project and fixed on the approved shop drawings

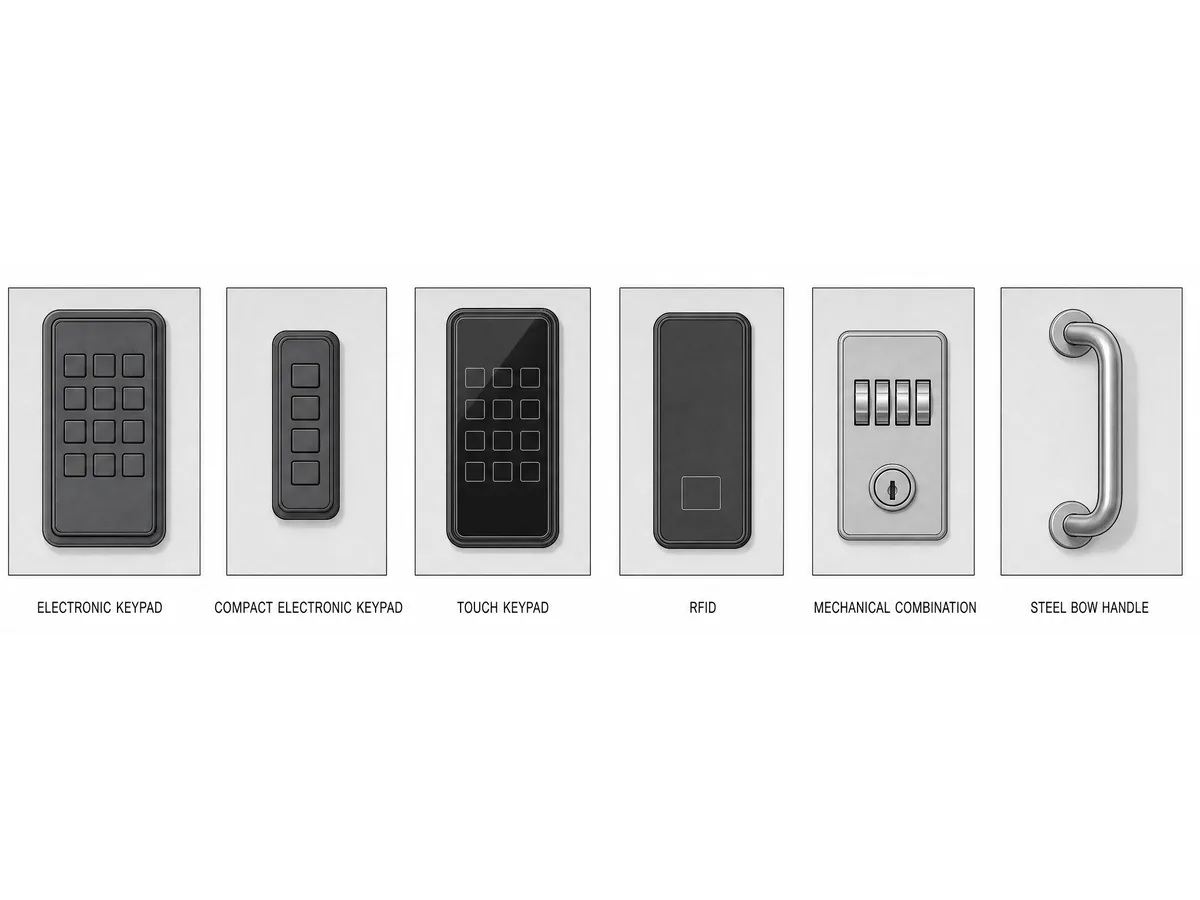

Locks

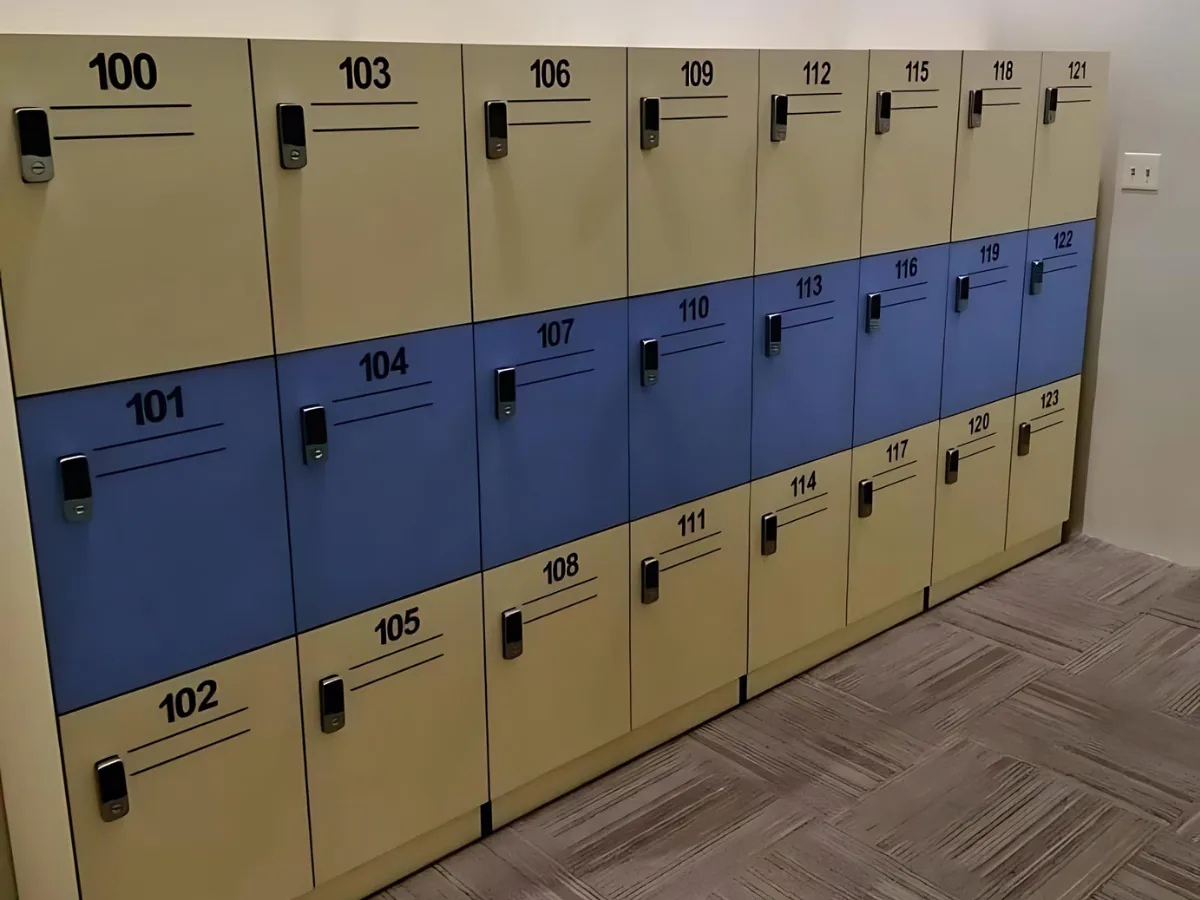

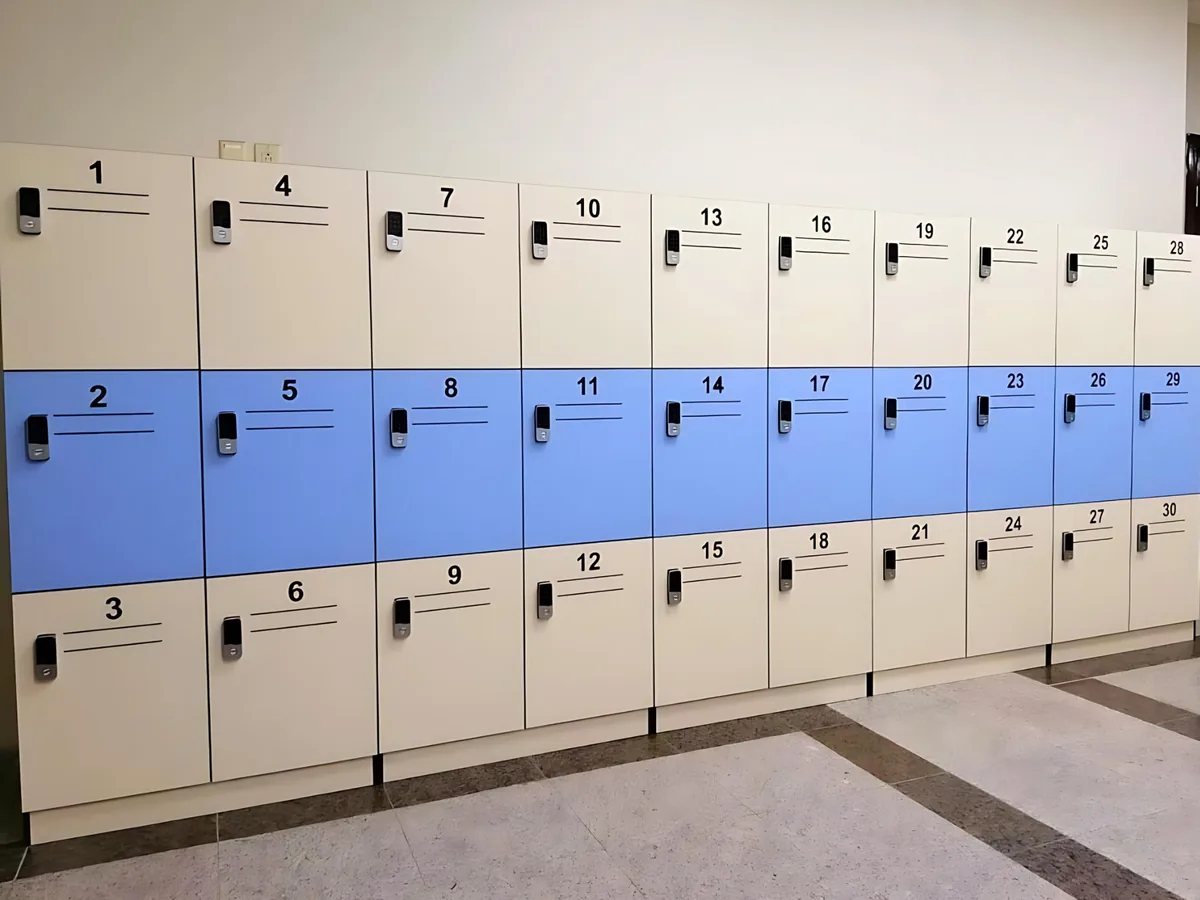

Electronic keypad with master, sub-master and user codes (public or private mode) · compact keypad · touch keypad with automatic locking and unlocking · RFID card or fob, 13.56 MHz · four-digit mechanical combination with master-key retrieve

Lock power and override

Electronic locks run on batteries; master-key emergency opening on every electronic option

Handles

Steel bow handles in seven sizes and four plated finishes

Benches

Compact-board benches supplied with the lockers; size agreed per project

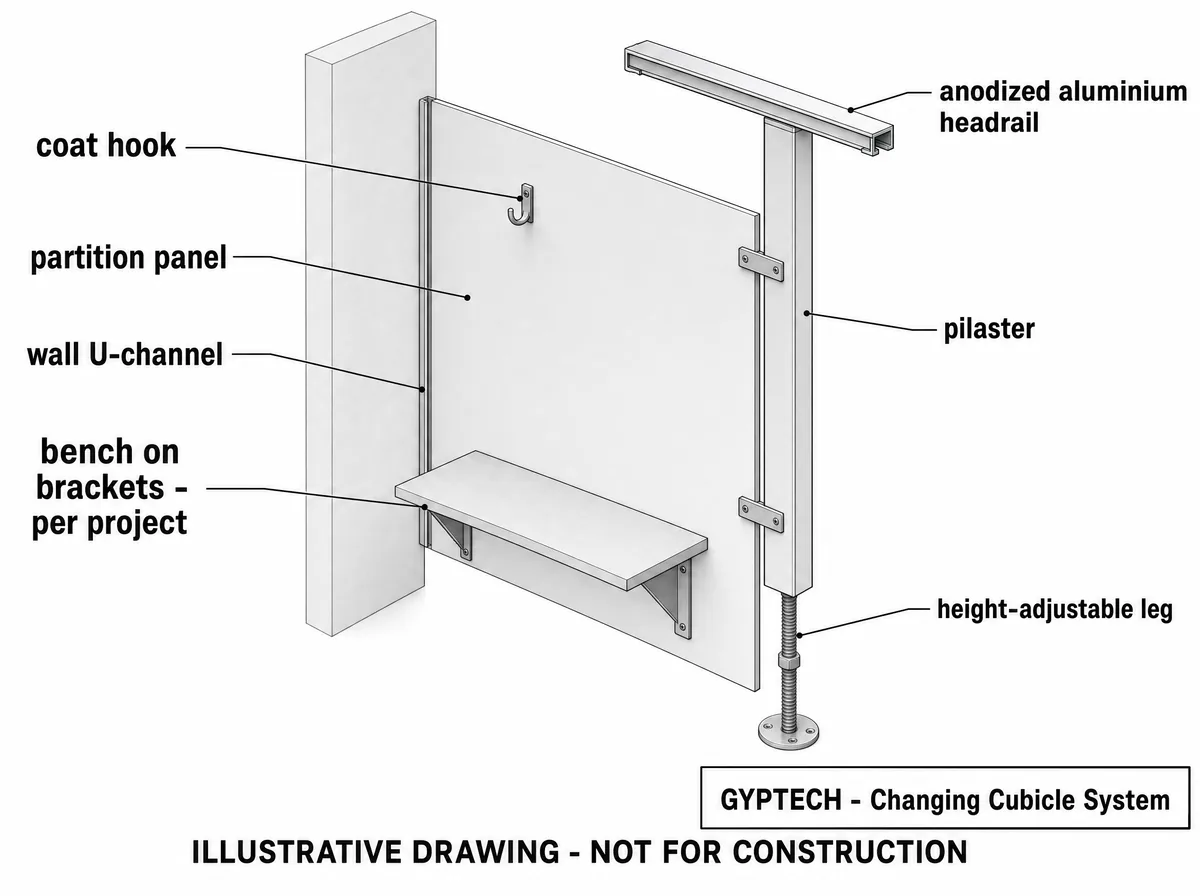

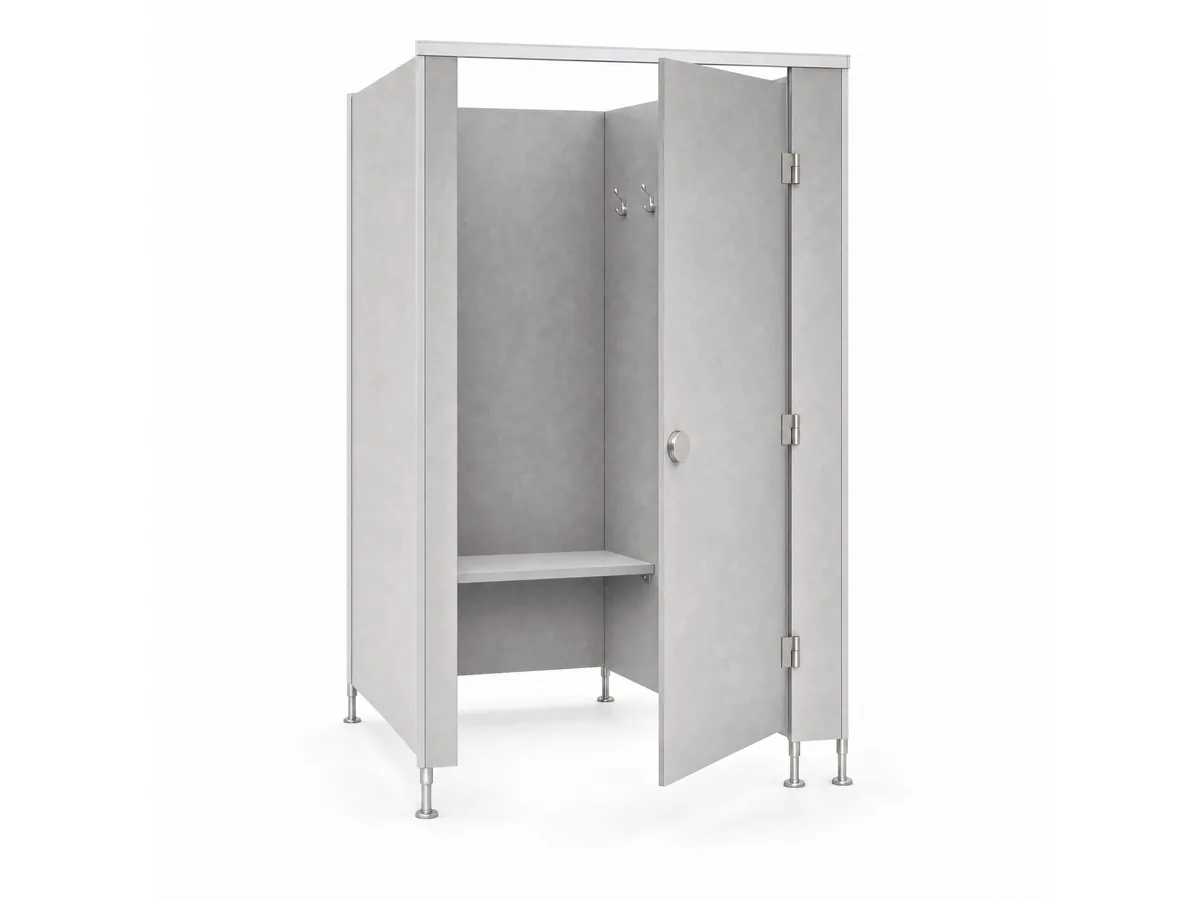

Changing cubicles

Our toilet-cubicle construction in a changing layout: compact-board doors, pilasters and partitions with chamfered edges, anodized aluminium headrail and height-adjustable legs, with a bench and coat hooks inside

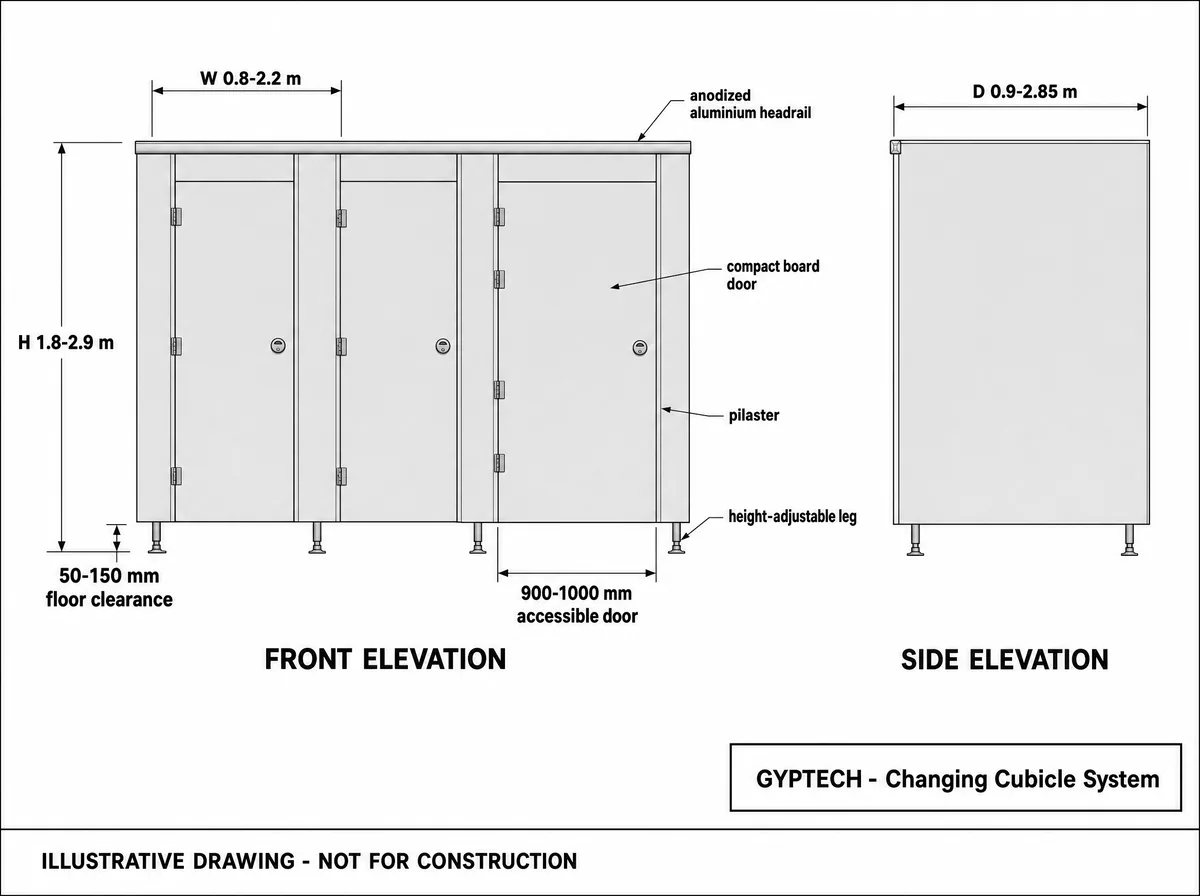

Cubicle sizes

W 0.8–2.2 m · D 0.9–2.85 m · H 1.8–2.9 m; doors 550–1000 mm (600–700 mm standard); accessible doors 900–1000 mm with a fourth hinge; floor clearance 50–150 mm, reduced for privacy per project

Cubicle hardware

Stainless steel or black nylon line, agreed per project; three hinges per door and a turn-lock occupancy indicator

Where used

Interior areas, including humid areas such as changing rooms beside showers and pools; not for exterior, submerged or continuously wet positions

Supplied by GYPTECH

Locker units and doors, interior fittings, locks and handles, benches where ordered, fixings. By others: finished level floor, anchoring substrate, builder's work and painting
